The 10T Steel Uncoiler is engineered to manage and unwind hefty steel coils with precision, serving as a cornerstone in metalworking operations. From there, the flattened strip flows directly into downstream processes—like stamping presses, roll-forming lines, or slitting stations—streamlining the entire workflow. In the metalworking sector, it’s nothing short of essential, bridging raw material to finished product without missing a beat.
Features of the 10T Uncoiler Machine

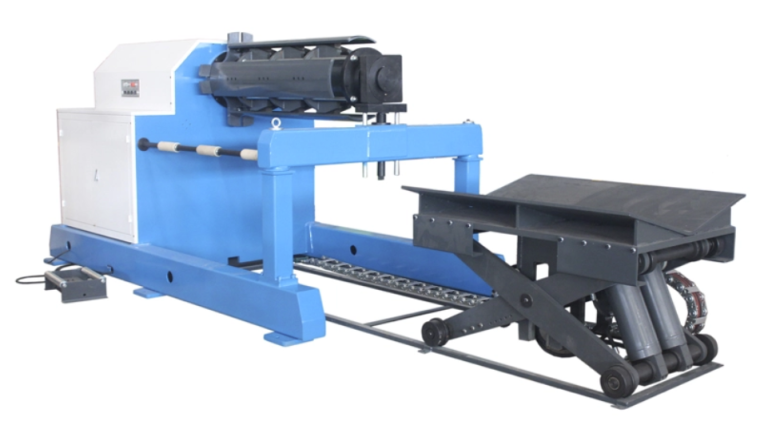

The 10T Hydraulic Expanding Uncoiler with Electric Motor Drive is a fully automated system designed for seamless steel coil handling. It supports both forward and reverse rotation for versatile operation, while the 10T conical decoiler relies on downstream equipment—like a roll former—to actively pull and unwind the coil through a purely mechanical process.For enhanced flexibility, optional add-ons include a coil car for efficient loading and a pressing arm to secure the material during uncoiling.This machine accommodates inner coil diameters of 508mm or 610mm, achieved by simply adding a PE spacer plate to the decoiler’s supporting base. It also features sturdy supporting legs to ensure stable, standalone installation.
Specifications of the 10T Uncoiler Machine
|
No.
|
Item
|
Parameter
|
Remark
|
|---|---|---|---|
|
1
|
Capacity
|
10T
|
|
|
2
|
ID of Coil
|
φ508/610mm
|
|
|
3
|
OD of Coil
|
φ1250mm
|
|
|
4
|
Min OD of Coil
|
φ750mm
|
Related to coil car
|
|
5
|
Width of the Coil
|
1000mm-1250mm
|
|
|
6
|
Speed of Decoiling
|
≤35m/min
|
|
|
7
|
Power of Hydraulic Station
|
7.5kW
|
|
|
8
|
Power of the Motor
|
3kW
|
According to actual design
|
|
9
|
The Hydraulic Pressure
|
15MPa
|
|
|
10
|
Power Source
|
380V/50Hz/3PH
|
|
|
11
|
Total Power
|
About 10.5kW
|
