Introduction to Double Layer Roll Forming Technology
The Double Layer Roof Tile Machine is a specialized manufacturing system designed for producing double-layer metal tiles used in roofing and cladding applications. This advanced equipment processes metal coils through a series of precisely engineered steps to create two distinct tile profiles in a single machine, optimizing production efficiency and versatility. By integrating mechanical, hydraulic, and electronic control systems, the machine ensures high-speed, large-scale production while maintaining the durability and aesthetic standards required in the construction industry. The dual-layer design allows manufacturers to produce two different tile profiles without reconfiguring the machine, making it an invaluable asset for meeting diverse market demands.
The double-layer roll forming process leverages the principles of cold-forming, where metal coils are progressively shaped through a series of rollers at room temperature. This method minimizes material waste and preserves the mechanical properties of the metal, such as its yield strength and corrosion resistance. With automated control systems, including programmable logic controllers (PLCs), these machines achieve high precision and repeatability, ensuring consistent product quality. The ability to switch between two profiles enhances operational flexibility, catering to both residential and commercial construction needs.
Main Components and Operational Dynamics
The Double Layer Roof Tile Machine comprises several critical components, each designed to contribute to a seamless and efficient production process. The primary components include the decoiler, the main roll forming system, and the shearing cutting station. These elements work in tandem to transform raw metal coils into finished double-layer tiles, with automation ensuring minimal operator intervention and high throughput. The machine’s design emphasizes modularity and precision, allowing it to handle various material types and thicknesses while maintaining tight tolerances.
The operational dynamics of the machine rely on the integration of hydraulic and electronic systems. The decoiler feeds the metal coil into the roll forming system, where rollers shape it into two distinct profiles. The cutting station then trims the formed sheets to precise lengths, ensuring smooth edges and accurate dimensions. The use of advanced PLCs and encoders enables real-time monitoring and control, optimizing forming speed and cutting accuracy. This synchronized operation is critical for achieving production rates that meet the demands of large-scale construction projects.
Decoiler: The Foundation of Material Handling
The decoiler is a pivotal component of the Double Layer Roof Tile Machine, responsible for unwinding and feeding metal coils into the production line. Typically equipped with a hydraulic or motor-driven system, the decoiler ensures a continuous and stable supply of material. It consists of an unwinder, straightening rollers, and a drive system, with capacities ranging from 5 to 15 tons to accommodate heavy coils. The hydraulic system provides high pressure and flow, enabling smooth unwinding even for large, high-strength coils.
The decoiler’s cantilever structure, combined with external support bearings, enhances rigidity and stability, reducing vibrations and ensuring consistent material feed. Straightening rollers correct any coil imperfections, such as curvature or unevenness, before the material enters the roll forming system. This precision in material handling is crucial for preventing defects in the final product and maintaining high production efficiency. Advanced decoilers may also feature automatic tension control, further improving operational reliability.
| Decoiler Parameter | Specification |
|---|---|
| Capacity | 5t/8t/10t/15t (optional) |
| Drive System | Hydraulic/Motor-driven (optional) |
| Structure | Cantilever with external support bearings |
| Material Width | 1200/1220/1250 mm |
| Features | Straightening rollers, Automatic tension control (optional) |
Main Roll Forming System: Precision in Profile Creation
The main roll forming system is the core of the Double Layer Roof Tile Machine, where metal coils are transformed into two distinct tile profiles. This system features two sets of roller groups mounted on high and low racks, allowing the machine to alternate between profiles without requiring extensive reconfiguration. The low rack processes one tile type, while the high rack forms another, enabling efficient production of diverse profiles such as corrugated or trapezoidal tiles.
The roll forming system is integrated with the decoiler, straightening rollers, and cutting station to form a continuous production line. Rollers, typically made from high-strength steel with a hardness of HRC 58-62, are designed to withstand the stresses of continuous operation. The system is driven by a motor, with an encoder detecting the rotation pulse of the drive roller in real time. The PLC processes this data to control forming speed and shear length, ensuring dimensional accuracy within ±1 mm. This precision is critical for producing tiles that meet industry standards for fit and finish.
| Roll Forming Parameter | Specification |
|---|---|
| Production Speed | 20/30/40/50/60 m/min (optional) |
| Roller Material | High-strength steel, HRC 58-62 |
| Roller Stations | 18-24 stations per rack |
| Control System | PLC (Mitsubishi/Siemens/AMS), Encoder precision ±0.5mm |
| Profile Types | Corrugated, Trapezoidal, Standing Seam (customizable) |
Shearing Cutting Station: Ensuring Precision and Quality

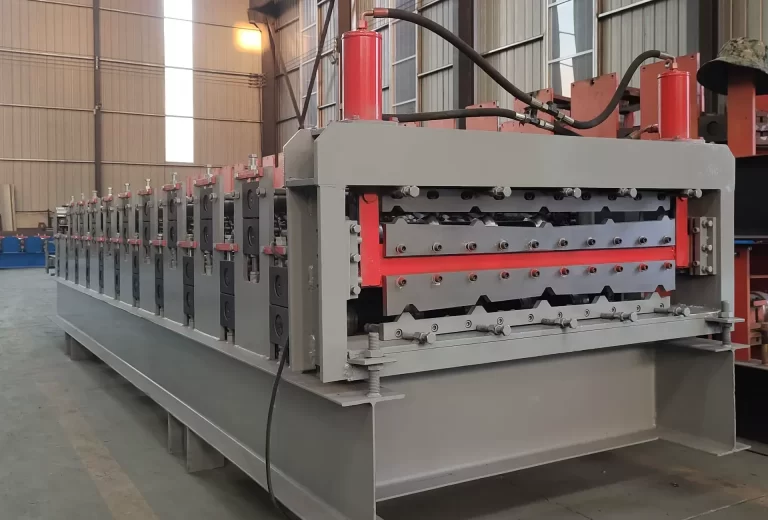

The shearing cutting station in the Double Layer Roof Tile Machine is designed to deliver precise cuts, ensuring smooth edges and accurate dimensions for the finished tiles. Typically hydraulically driven, the cutting device uses an oil cylinder to push upper and lower cutting dies, completing the shearing action. The double-height design of the cutting dies accommodates the dual-layer structure, allowing the machine to process two different profiles without requiring separate setups.
The cutting station is synchronized with the roll forming system via the PLC, which uses encoder data to ensure cuts are made at the exact length specified. This results in a cutting precision of ±1 mm, minimizing material waste and ensuring consistency across batches. The hydraulic system provides the necessary force to cut through materials with yield strengths up to 675 MPa, making it suitable for high-strength steels and aluminum. The smooth, burr-free cuts enhance the aesthetic and functional quality of the tiles, meeting the stringent requirements of modern construction.
| Cutting Station Parameter | Specification |
|---|---|
| Drive System | Hydraulic |
| Cutting Precision | ±1 mm |
| Cutting Die Design | Double-height for dual profiles |
| Material Compatibility | Colored Steel, Galvanized Steel, Stainless Steel, Aluminum |
| Power | 5.5-11 kW |
Advantages of Double Layer Roof Tile Machines
The Double Layer Roof Tile Machine offers several advantages that make it a preferred choice for manufacturers. Its ability to produce two different tile profiles in a single machine significantly reduces equipment costs and floor space requirements compared to using separate machines for each profile. This dual-profile capability also minimizes downtime associated with profile changes, enhancing production efficiency. The automated control systems, including PLCs and encoders, ensure high precision and consistency, reducing material waste and rework.
From a material science perspective, the machine’s cold-forming process preserves the mechanical properties of the metal, ensuring durability and corrosion resistance in the finished tiles. The use of high-strength materials like galvanized steel and aluminum, combined with precise cutting and forming, results in tiles that meet both aesthetic and structural requirements. Additionally, the machine’s modular design allows for easy maintenance and upgrades, extending its operational lifespan. The integration of energy-efficient components, such as variable frequency drives, further reduces operational costs, making the machine a sustainable choice for modern manufacturing.
Applications and Industry Impact
Double Layer Roof Tile Machines are widely used in the construction industry for producing roofing and cladding tiles for residential, commercial, and industrial buildings. Their ability to create custom profiles with consistent quality makes them ideal for applications requiring both aesthetic appeal and structural integrity. The high-speed production capability, often exceeding 40 m/min, enables manufacturers to meet large-scale demands efficiently, supporting projects ranging from housing developments to industrial warehouses.
The industry impact of these machines is significant, as they contribute to sustainable construction practices by minimizing material waste and enabling the use of durable, lightweight materials. The precision and automation of the double-layer roll forming process reduce labor costs and improve product quality, enhancing competitiveness in global markets. Furthermore, compliance with international standards, such as CE certification, ensures that tiles produced by these machines meet rigorous quality and safety requirements, facilitating their use in diverse regions.
In conclusion, the Double Layer Roof Tile Machine represents a pinnacle of roll forming technology, combining advanced engineering, material science, and automation to deliver high-quality roofing solutions. Its efficiency, versatility, and sustainability make it a cornerstone of modern construction manufacturing, with ongoing advancements promising further improvements in performance and environmental impact.
