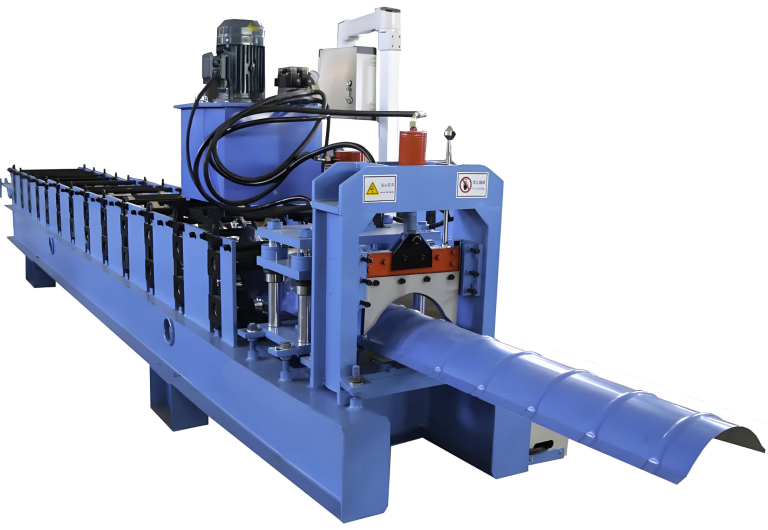

Ridge Cap Roll Forming Machine Overview:
A Ridge Cap Roll Forming Machine is an advanced piece of equipment tailored for the construction industry, designed to craft ridge caps—essential roofing components that crown the peak of sloped roofs. These caps, typically triangular or trapezoidal, shield the roof’s structural framework from weather elements and prevent water seepage, ensuring durability and protection.How It Works
- Material Loading: The process begins with a coil of metal—often steel, aluminum, or other roofing-grade materials—loaded onto a feeding system. This system smoothly unrolls the metal sheet, preparing it for shaping.
- Roll Forming Precision: At the core of the machine, the metal passes through a series of meticulously designed rollers and dies. These components gradually mold the flat sheet into a precise ridge cap profile, tailored to the specific needs of the roofing project. The flexibility of the system allows for customized shapes to suit unique architectural designs.
- Accurate Cutting: Once shaped, an integrated cutting mechanism trims the formed ridge cap to the desired length. Advanced machines feature inline cutting for exceptional accuracy, ensuring each piece meets exact specifications.
- Collection and Packaging: The finished ridge caps are neatly stacked or packaged, streamlining transport and installation at the construction site.
Key Advantages
- Unmatched Precision: These machines deliver consistently accurate ridge caps, ensuring a snug fit and a polished, professional roof finish.
- High Efficiency: Capable of producing large volumes in minimal time, they offer a cost-effective solution for roofing manufacturers.
- Tailored Customization: Contractors can adapt the profile, color, and material of the ridge caps to align with specific design and aesthetic goals.
- Minimal Waste: The roll forming process optimizes material use, reducing waste and promoting sustainable production.
- Labor Efficiency: Automation minimizes manual intervention, lowering labor costs and boosting overall productivity.
Components and Parameters of Ridge Cap Roll Forming Machine
| Component | Specifications |
|---|---|
| Decoiler | Available in 2T, 3T, or 5T capacities; choice of motor-driven, hydraulic, or passive operation (customizable). |
| Film Coating Device | Optional addition for enhanced material protection. |
| Front Shear | Optional feature for precise pre-cutting of materials. |
| Lubrication System | Not required, ensuring simplified maintenance. |
| Roll Forming System | High-speed operation at 15, 20, or 30 m/min, tailored to production needs. |
| Safety Cover | Optional for enhanced operator safety and compliance. |
| Post-Cutting System | Choice of motor-driven or hydraulic cutting mechanism (customizable). |
| Output System | Manual support or automated stacker options; stacker orientation (lateral or longitudinal) customizable. |
| Hydraulic System | Powers decoiler and post-cutting systems for seamless operation. |
| Electrical Control System | Advanced control options including MITSUBISHI, SIEMENS, or AMS systems (customizable per client requirements). |
Specifications of Ridge Cap Roll Forming Machine
| Parameter | Details |
|---|---|
| Panel Shape | Custom-designed per profile drawings or specific client requirements. |
| Operator Requirement | Requires only one operator for efficient operation. |
| Power Supply | Flexible options: 220V, 380V, 415V, or 460V; 50/60Hz, 3-phase (per client needs). |
| Equipment Weight | Approximately 8 tons, ensuring robust and stable performance. |
| Dimensions (L×W×H) | Approximately 20m × 2.5m × 2m, compact yet powerful design. |
| Loading Size | Typically requires one 40-foot container for transport. |
| Equipment Color | Standard colors: Blue or White; customizable to client preferences. |
| Place of Origin | Zhejiang, China (Mainland). |
| Packaging | Secure, industry-standard export packing for safe delivery. |
profiles of Ridge Cap
applications of Ridge Cap
