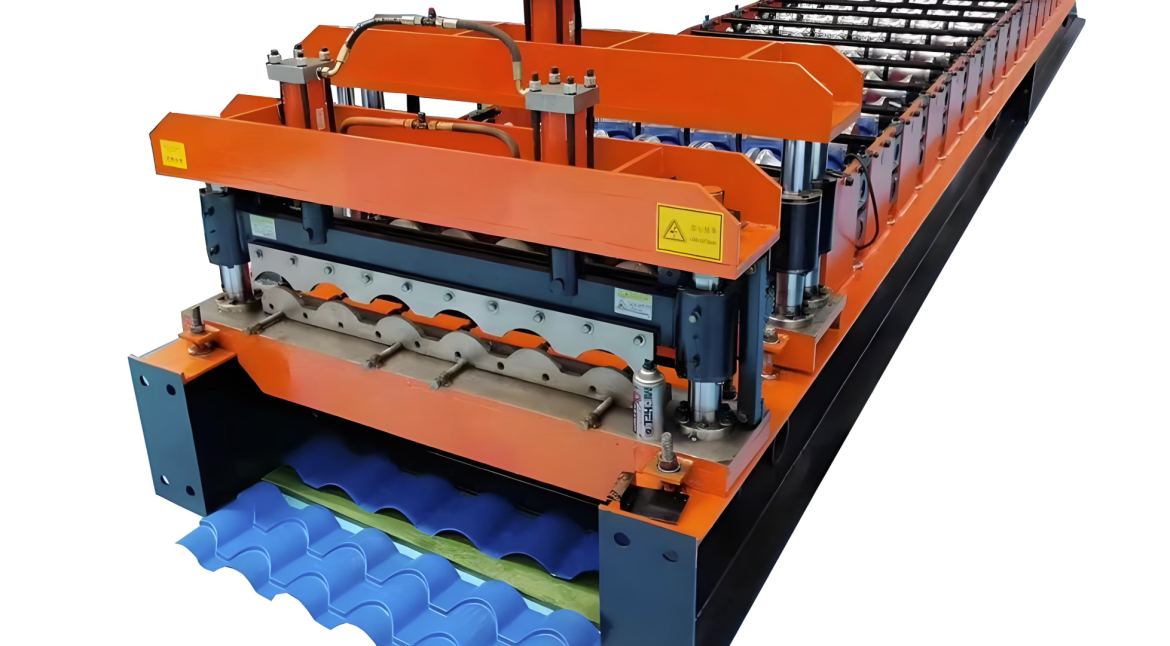

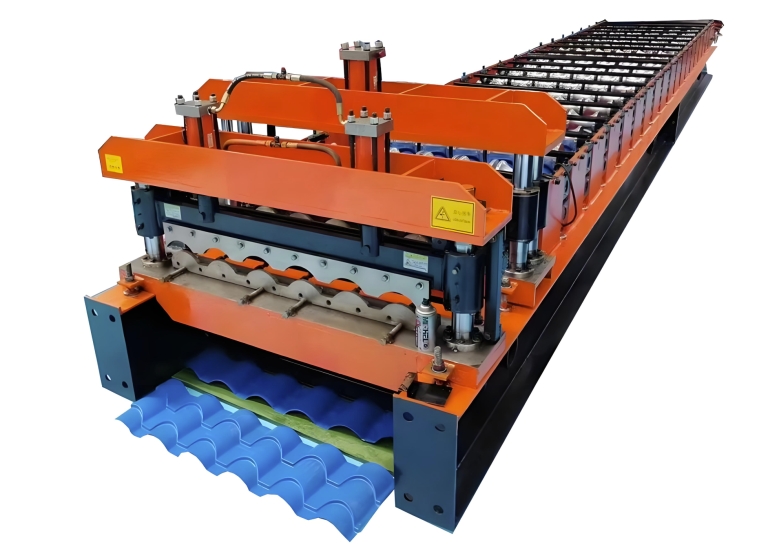

Roofing Tile and Glazed Tile Making Machine
The Roofing Tile and Glazed Tile Making Machine is a state-of-the-art solution designed to produce high-quality step tile sheets with precision and efficiency. Engineered for continuous roll forming and pressing, this machine delivers stunning roofing tiles that combine aesthetic appeal with durability, making it an ideal choice for modern construction projects.
Key Features
- Precision Step Tile Formation
This machine excels at creating step tile sheets through a seamless roll forming and pressing process. Operators can easily customize the step length and adjust the depth of each step, offering unmatched flexibility to meet specific design requirements and project specifications. - Efficient Production Speed
With a production rate of approximately 10 meters per minute, the machine strikes a perfect balance between speed and precision, ensuring steady output for large-scale manufacturing without compromising quality. - Certified Excellence and Innovation
The machine is CE-certified and adheres to European quality standards, guaranteeing safety, reliability, and top-tier performance. Backed by multiple patents, its innovative design sets it apart as a leader in tile-making technology, delivering cutting-edge functionality for professional applications. - Ready for Immediate Delivery
For the most popular and in-demand tile profiles, the machine is readily available in stock, enabling prompt delivery to keep your production timeline on track, even for urgent projects. - Versatile Raw Material Compatibility
The machine is designed to process a variety of materials, including:- Material Types: Color-coated steel and aluminum sheets, offering flexibility for different aesthetic and structural needs.
- Thickness Range: 0.4–0.6 mm, ideal for producing lightweight yet durable roofing tiles.
- Yield Strength: Supports materials with 230–350 MPa, with optional configurations for enhanced versatility.
- Material Width: Accommodates widths of 1200 mm, 1220 mm, or 1250 mm, ensuring compatibility with standard material sizes.
Specifications of Glazed Tile Making Machine
| Machine Condition | Fully New, A Grade quality |

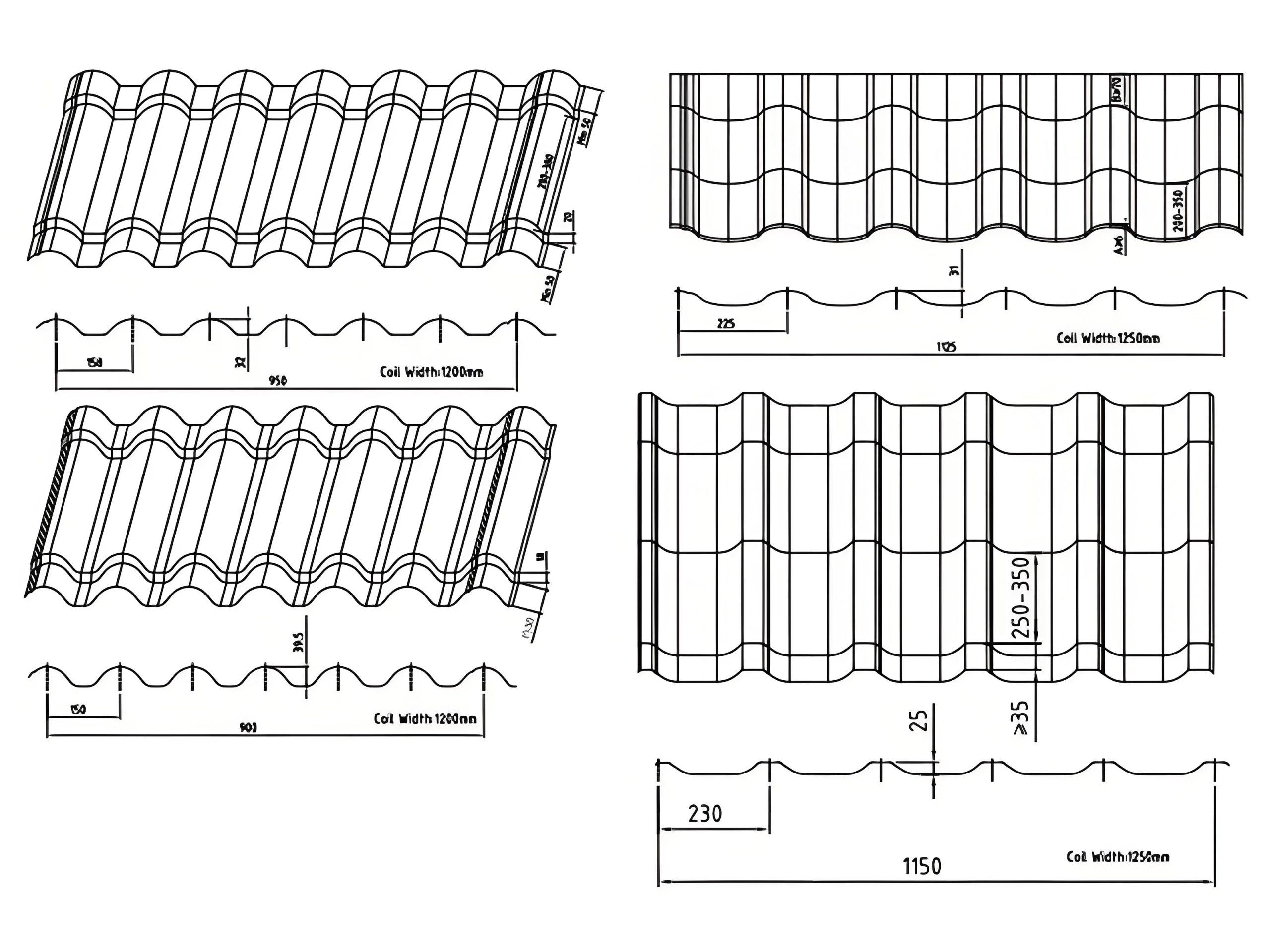

| Panel Shape | As profile drawing and customer’s requirements |
| Operator needed | 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 15t |
| Dimension | (L*W*H) about 25*3*2m |
| LOADING SIZE | Normally need 1x 40′ (+ 1x 20GP) container |
| Equipment Color | Normally Blue/White, or as requests |
| Place of Origin | hebei, China (Mainland) |
| Packing | Standard and careful export packing |
The Working Process of Glazed Tile Making Machine
The general working process of our glaze tile forming machine is as follows: Coil Charging Car (optional) – Decoiler (passive/auto) – Front Shear(optional) – Feeding and Guiding Table – Filming Covering (optional) – Roll Forming System – Step Pressing System – Post-Cutting to length (Hydraulic) – Output Manual Supporter/ Stackmaster (optional)
