Metal Garden Fence Post Roll Forming Machine
Workflow and Specifications
| Component/Feature | Details |
|---|---|
| Workflow Overview | |
| Process | Decoiler (Customer-Supplied) → Feeding Guide Device → Roll Forming Mill → Hydraulic Middle Cutting Device → Leveling Device → PLC Control System → Exit Rack (3 Meters with Roller Row) |
| Feeding Guide Device | |
| Functionality | Adjustable guiding position for precise material alignment and smooth feeding, minimizing waste |
| Roll Forming Mill | |
| Frame | H450 steel with high-strength welding for robust stability |
| Side Wall | Q235 steel, 18mm thickness for enhanced structural integrity |
| Rollers | 45# steel, precision-machined, hard chrome-coated (0.5mm thickness), mirror-treated for longevity and rust resistance |
| Shafts | 45# steel, quenched and tempered, hard chrome-plated, 75mm or 90mm diameter, precision-machined |
| Drive System | Gear and chain mechanism with approximately 20 forming steps |
| Main Motor | 11kW with frequency speed control |
| Speed Reducer | R-series motor for smooth power transmission |
| Fasteners | High-grade 8.8 screw bolts for secure structure and long-term durability |
| Forming Speed | 15–18m/min |
| Hydraulic Post Cutting Device | |
| Hydraulic Motor | 4kW for reliable cutting performance |
| Cutting Tool Material | Cr12MoV (equivalent to SKD11), heat-treated for at least one million cutting cycles |
| Leveling Device | |
| Functionality | Ensures flat, uniform fence posts meeting stringent quality standards |
| PLC Control System | |
| Functionality | Intuitive programming for precise control of production parameters, minimizing errors |
| Exit Rack | |
| Features | 3-meter rack with roller row for smooth collection and handling of finished fence posts |

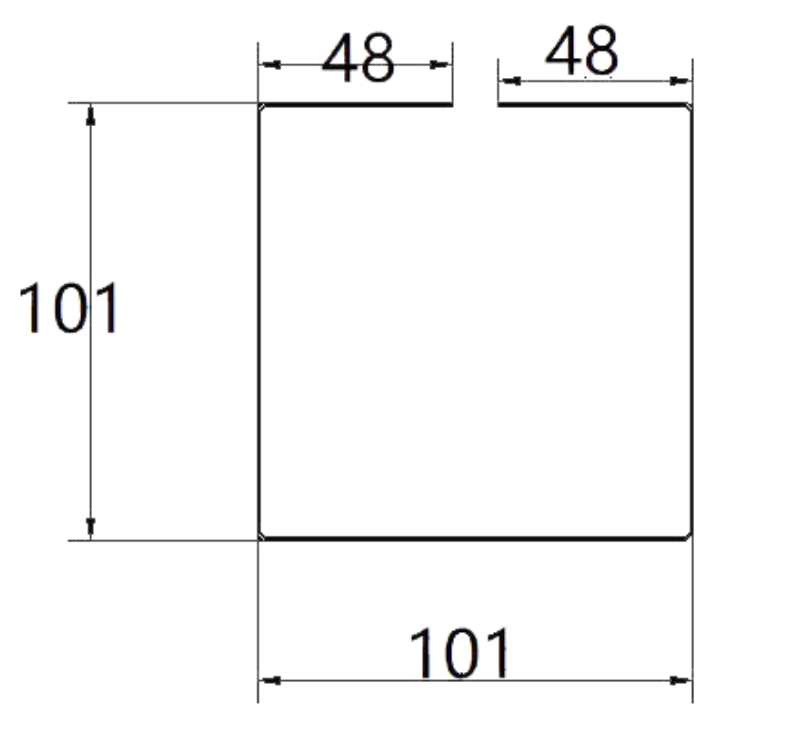

profile of Metal Garden Fence Post Forming Machine

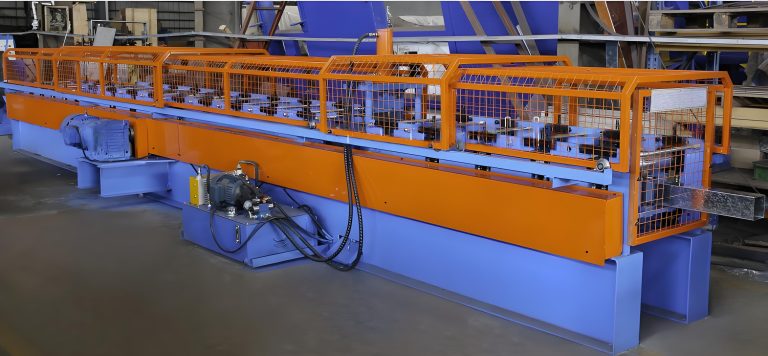

components of Metal Garden Fence Post Forming Machine

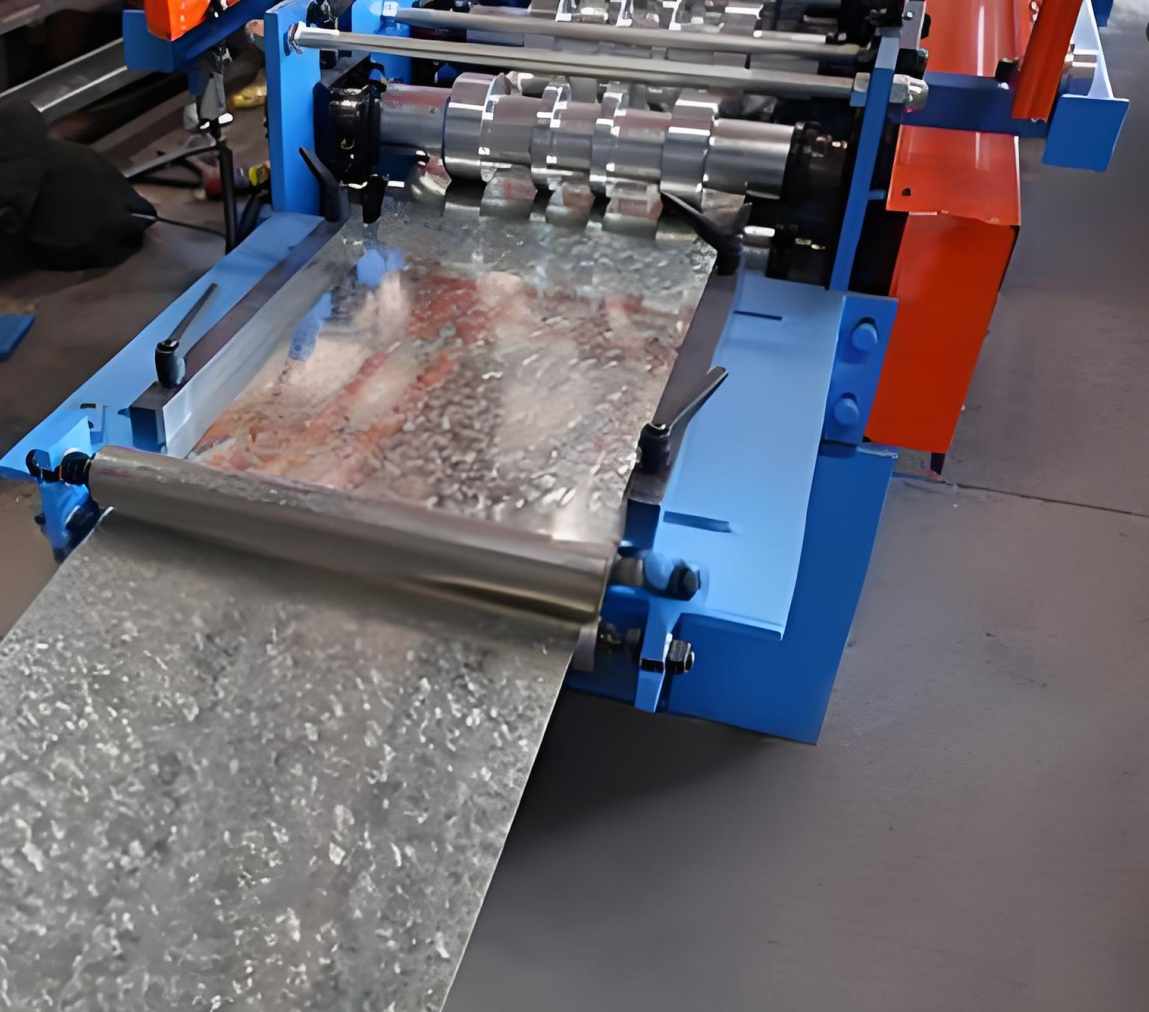

Feeding Device

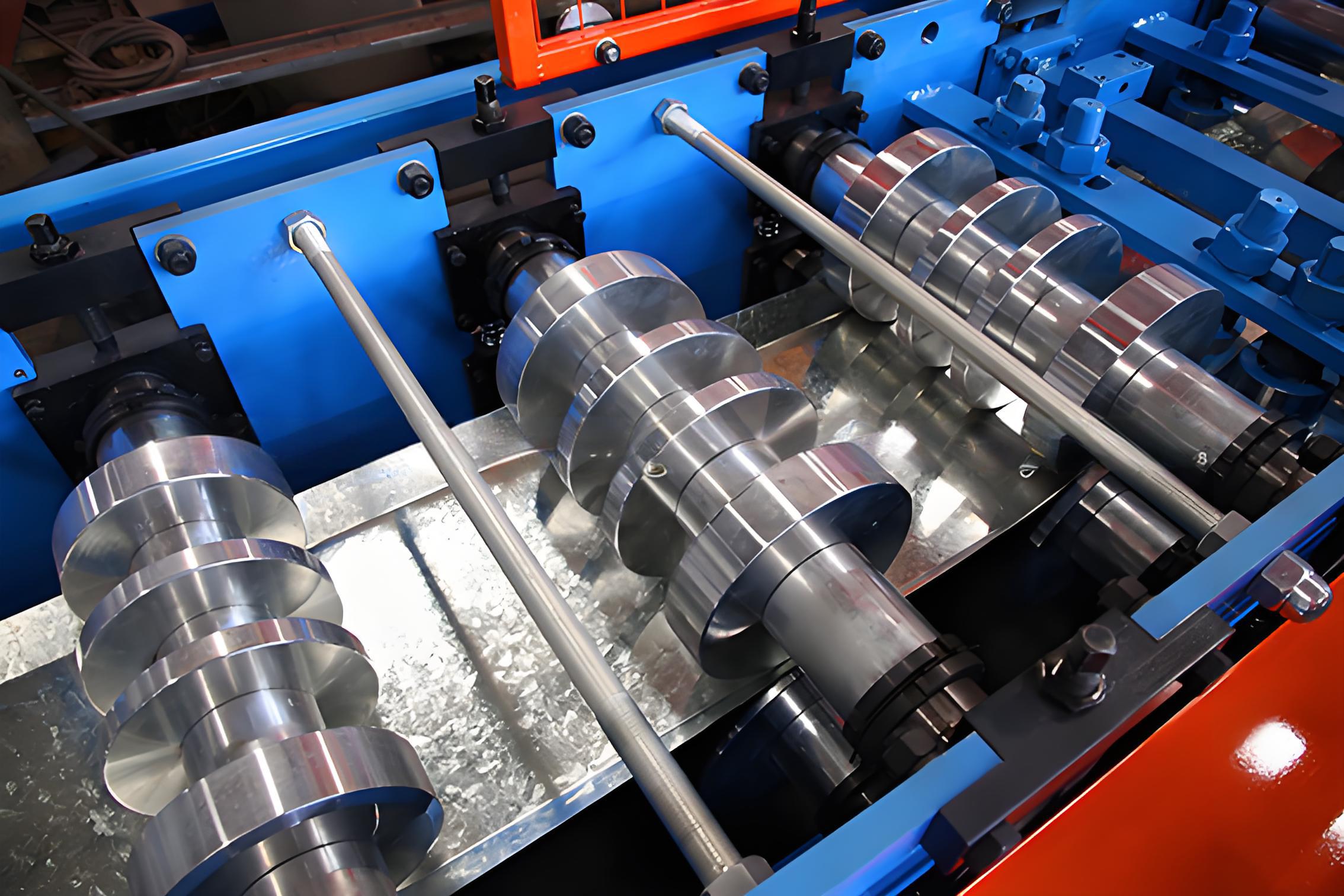

Roll Forming Mill
