Introduction to Ridge Cap Roll Forming Machines

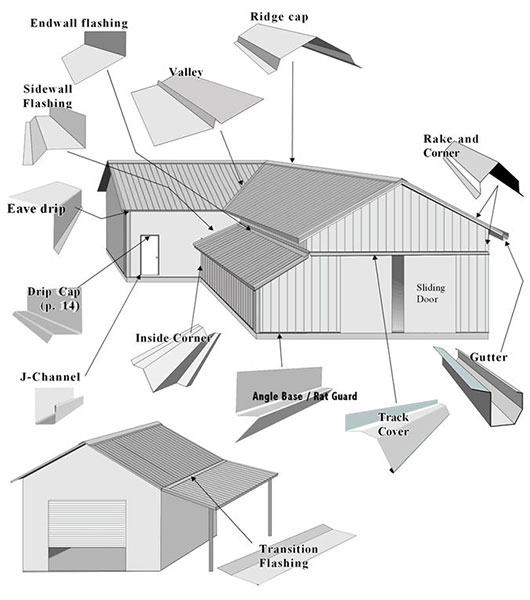

Ridge cap roll forming machines are specialized equipment designed to produce ridge caps, which are critical components in roofing systems. These machines transform metal coils into precisely shaped ridge caps that cover the apex where two roof slopes meet, ensuring a watertight seal and aesthetic finish. Ridge caps are essential for protecting buildings from environmental elements, such as rainwater infiltration, and enhancing structural durability. Unlike traditional roofing methods, roll forming offers high precision, efficiency, and customization, making it a preferred choice in modern construction. This article provides a detailed, scientific analysis of ridge cap roll forming machines, including their operational principles, technical specifications, performance metrics, and comparative advantages over alternative manufacturing methods.
Operational Principles and Workflow

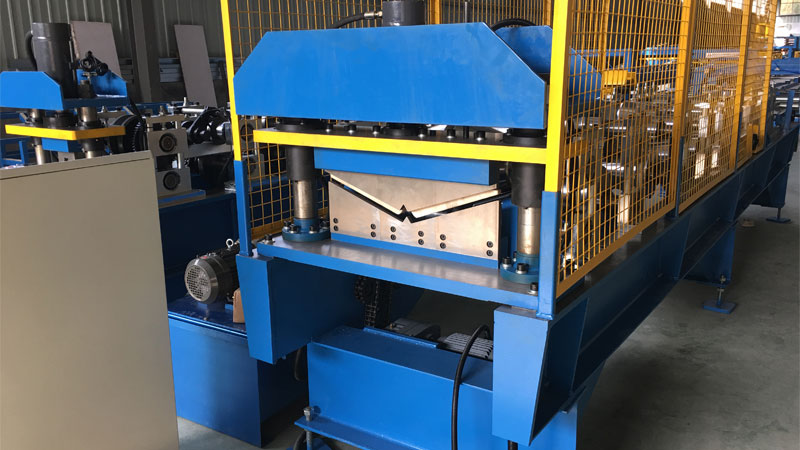

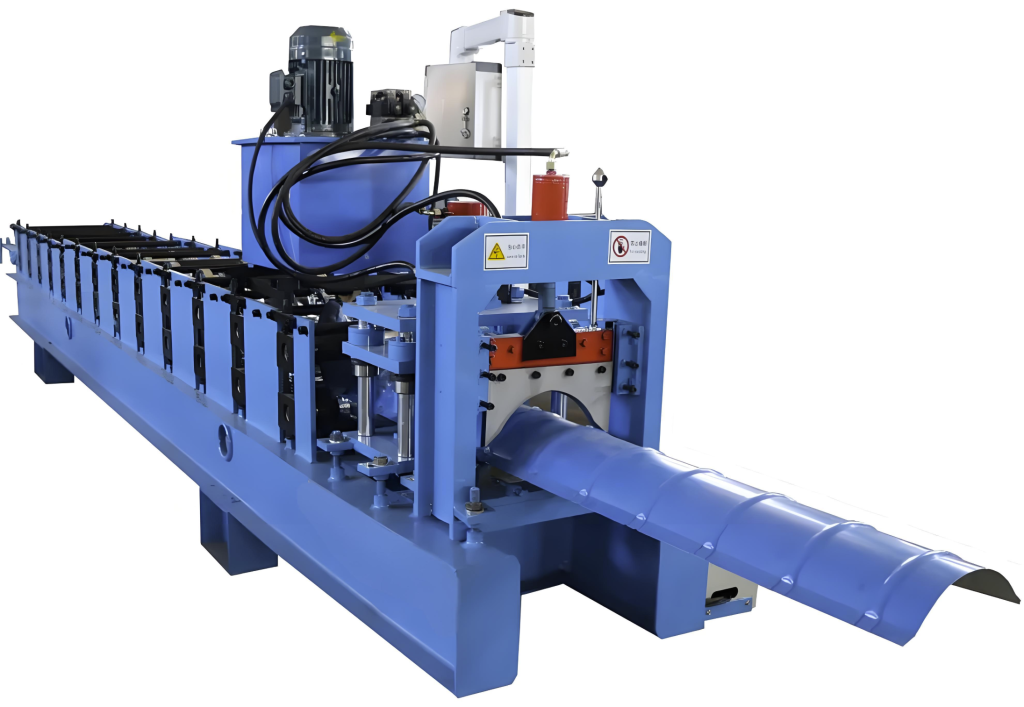

The ridge cap roll forming machine operates through a systematic process that ensures consistent production of high-quality ridge caps. The workflow begins with a coil charging car (optional) that loads the metal coil onto a decoiler, which can be passive or automatic, depending on the machine’s configuration. The decoiler unwinds the coil, feeding it into a feeding and guiding table that aligns the material for precise forming. An optional filming covering unit applies protective layers to enhance corrosion resistance. The core of the process is the roll forming system, where a series of rollers progressively shapes the metal into the desired ridge cap profile. For specific designs, a step punching unit creates perforations or slots as required. Post-forming, a hydraulic or motor-driven post-cutting system trims the ridge cap to the specified length. Finally, the finished product is collected via a manual supporter or an automated stackmaster. This streamlined process ensures high throughput, typically ranging from 10 to 30 meters per minute, depending on the machine’s specifications. The precision of each stage minimizes material waste, with scrap rates often below 2%, and ensures dimensional accuracy within ±0.5 mm.
Technical Specifications and Parameters
To understand the capabilities of ridge cap roll forming machines, it’s essential to examine their technical specifications. The table below outlines typical parameters for a standard ridge cap roll forming machine, with variations based on customization:
| Parameter | Specification |
|---|---|
| Material Type | Galvanized steel, aluminum, stainless steel, or color-coated steel |
| Material Thickness | 0.3–0.8 mm (standard), up to 1.2 mm for heavy-duty models |
| Material Width | 300–600 mm (customizable based on profile) |
| Forming Speed | 10–30 m/min (adjustable based on motor power and profile complexity) |
| Roller Stations | 12–18 stations (varies with profile design) |
| Roller Material | 45# steel with chrome plating or Cr12MOV for enhanced durability |
| Cutting System | Hydraulic shear or servo-motor driven, with ±0.5 mm cutting tolerance |
| Power Supply | 380V/50Hz/3Phase (customizable to 220V or other standards) |
| Main Motor Power | 5.5–11 kW (depending on material thickness and forming speed) |
| Hydraulic Station Power | 3–5.5 kW |
| Control System | PLC (Programmable Logic Controller) with touchscreen interface |
| Machine Weight | 3–8 tons (varies with machine size and configuration) |
| Machine Dimensions | 6–10 m (L) x 1.5–2 m (W) x 1.5 m (H) |
These specifications highlight the machine’s versatility in handling various materials and thicknesses, making it suitable for diverse roofing applications. The PLC control system ensures precise operation, with error margins below 0.1% for length and profile accuracy, enhancing reliability in high-volume production.

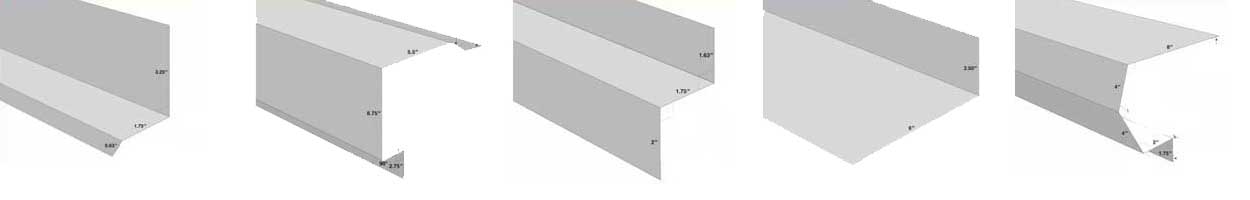

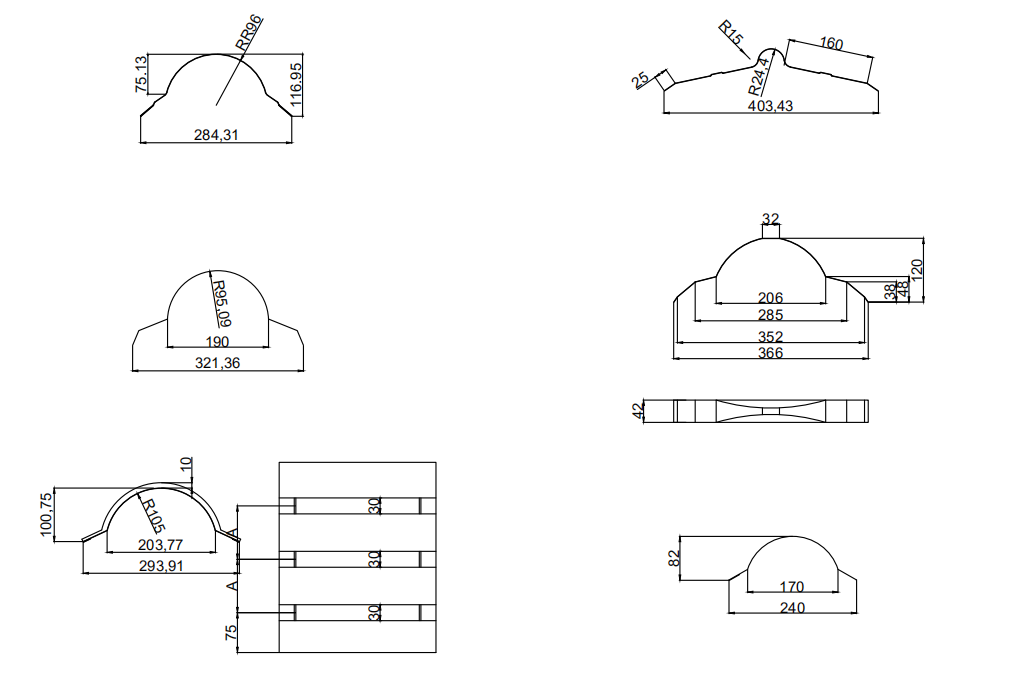

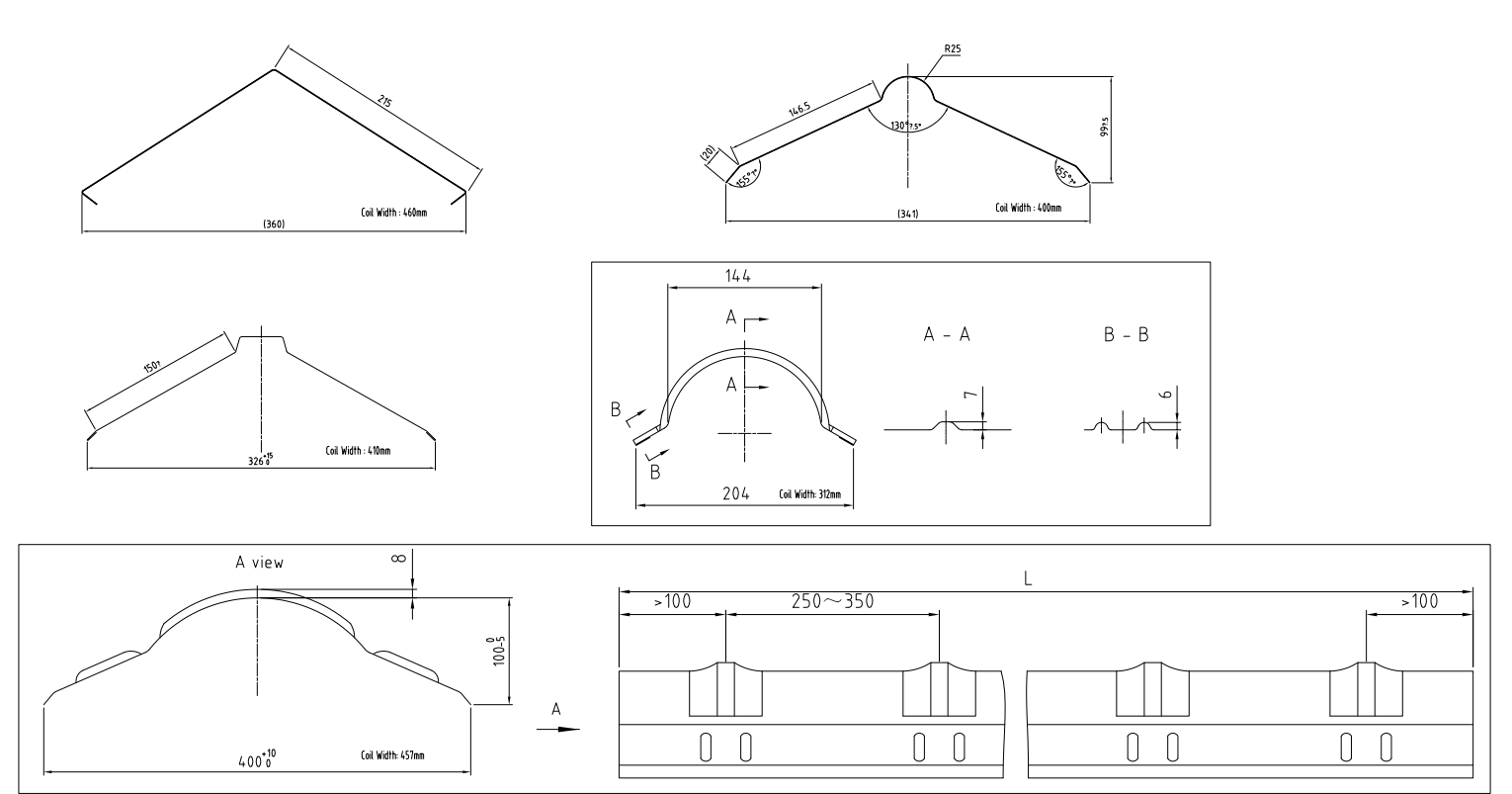

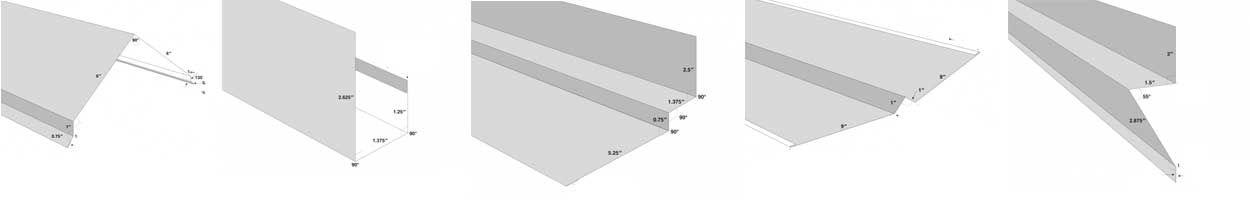

Ridge Cap profile

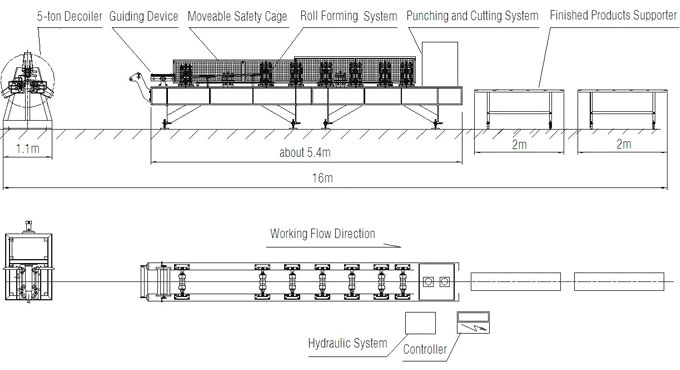

Ridge Capping Making Line Layout Drawing
Comparative Analysis: Roll Forming vs. Traditional Methods
Ridge cap production can also be achieved through manual bending, press braking, or extrusion. However, roll forming offers distinct advantages. A comparative analysis is provided below:
| Criteria | Roll Forming | Manual Bending | Press Braking |
|---|---|---|---|
| Production Speed | 10–30 m/min | 1–2 m/min | 5–10 m/min |
| Material Waste | <2% | 5–10% | 3–5% |
| Dimensional Accuracy | ±0.5 mm | ±2–3 mm | ±1 mm |
| Labor Requirement | 1–2 operators | 3–5 operators | 2–3 operators |
| Customization Flexibility | High (adjustable rollers and PLC) | Low (manual adjustments) | Moderate (tooling changes required) |
| Initial Investment | High ($20,000–$100,000) | Low ($1,000–$5,000) | Moderate ($10,000–$50,000) |
| Maintenance Cost | Moderate (regular lubrication, roller checks) | Low (minimal equipment) | Moderate (hydraulic system maintenance) |
Roll forming excels in speed, accuracy, and scalability, making it ideal for large-scale production. Manual bending, while cost-effective for small batches, lacks precision and is labor-intensive. Press braking offers a middle ground but requires frequent tooling changes for different profiles, reducing efficiency. Data from industry studies indicates that roll forming reduces production costs by 20–30% compared to press braking for high-volume runs exceeding 10,000 meters annually.
Material Considerations and Performance Metrics
The choice of material significantly impacts the performance of ridge caps produced by roll forming machines. Galvanized steel (yield strength: 235–345 MPa) is the most common due to its corrosion resistance and cost-effectiveness, with a typical lifespan of 20–30 years in moderate climates. Aluminum (yield strength: 90–150 MPa) is lighter and more corrosion-resistant but costs 20–40% more. Stainless steel (yield strength: 300–600 MPa) is used for premium applications due to its superior durability but is 50–80% more expensive than galvanized steel. Color-coated steel enhances aesthetics but requires careful handling to avoid surface damage during forming.
Performance metrics for ridge caps include tensile strength, weather resistance, and installation efficiency. Roll-formed ridge caps typically achieve tensile strengths of 300–500 MPa, depending on the material. Weather resistance is quantified by salt spray test results, with galvanized steel enduring 500–1,000 hours before corrosion onset, compared to 1,500–2,000 hours for stainless steel. Installation efficiency is improved by precise roll forming, reducing on-site adjustments by up to 40% compared to manually bent caps.
Challenges and Innovations
Despite their advantages, ridge cap roll forming machines face challenges, including high initial costs and the need for skilled operators to manage complex PLC systems. Material feed inconsistencies can lead to profile defects, requiring regular calibration. Innovations are addressing these issues. For instance, advanced servo-driven systems improve cutting precision to ±0.2 mm, and automated material alignment reduces setup time by 15–20%. Recent developments in hybrid roll forming machines integrate 3D scanning to monitor profile accuracy in real-time, reducing defect rates to below 0.5%. Additionally, eco-friendly designs incorporate energy-efficient motors, reducing power consumption by 10–15% compared to traditional models.
Ridge cap roll forming machines represent a pinnacle of precision and efficiency in roofing component manufacturing. Their ability to produce high-quality, customized ridge caps at scale makes them indispensable in modern construction. By leveraging advanced control systems, durable materials, and innovative designs, these machines outperform traditional methods in speed, accuracy, and cost-effectiveness. As the industry evolves, ongoing advancements in automation and material science will further enhance their capabilities, ensuring they meet the growing demands of sustainable and resilient roofing systems. For stakeholders seeking high-performance roofing solutions, investing in a ridge cap roll forming machine offers a compelling balance of quality, efficiency, and long-term value.
