Our advanced rolling shutter door machines are expertly engineered to craft a wide range of shutter panels with precision and efficiency. These versatile machines not only form panels but also handle punching and embossing tasks, with fully customizable panel profiles to meet your specific needs. At Hangzhou Roll Forming Technology, we leverage cutting-edge technology and uphold rigorous quality control throughout the entire production process, ensuring every shutter door machine delivers consistently exceptional quality. Reach out to us for detailed information on pricing and specifications tailored to your requirements.
Key Features and Benefits of Our Roller Shutter Door Roll Forming Machines
Our roll forming lines are purpose-built for high-volume production of rolling shutter door panels, designed to optimize performance and reliability.
- Flexible Production Speeds: Choose from speeds of 20, 30, 40, 50, or 60 meters per minute to match your operational demands.
- Seamless Efficiency: Equipped with a non-stop flying cut system and fully automated stacking, our machines achieve a maximum line speed of 60 m/min for unparalleled productivity.
- Versatile Design Options: Optional cassette-type platform with quick-change machine bases allows effortless switching between multiple profile types.
- Trusted Quality: Certified with multiple patents and compliant with CE and European quality standards, our machines guarantee durability and performance.
- Ready for Immediate Delivery: We maintain a stock of roll formers for the most popular shutter profiles, ensuring fast and reliable delivery to keep your projects on track.
coil sheet material of Rolling Shutter Door Roll Forming Machines
| Suitable material: | Cold/hot Rolled Steel, Galvanized Steel |
| Thickness: | 0.8-1.3/1.0-1.6/1.5-2.0 (mm) |
| Yield Strength: | 230-300 (MPa) |
| Width: | Tailored in accordance with the customers’ own requirements |

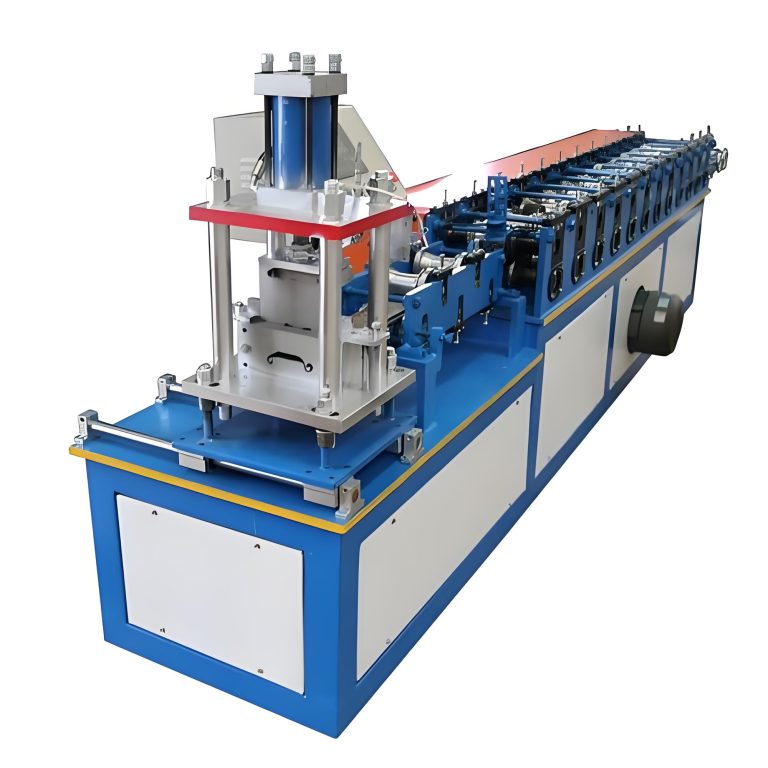

Specification of Rolling Shutter Roll Forming Machine
| Machine Condition y | Fully New, A-Grade quality |
| Panel Shape | As profile drawing and customer’s requirements |
| Operator | needed 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 15t |
| Dimension | (L*W*H) about 25*3*2m |
| LOADING SIZE | Normally need 1 x 40′ container. |
| Equipment Color | Normally Blue/White, or as requests; |
component and details of Rolling Shutter Roll Forming Machine
| Component | Description |
|---|---|
| Decoiler | Available in 5T, 8T, 10T, or 15T capacities, with options for motor-driven, hydraulic, or passive operation to suit your production needs. |
| Film Application Unit | Optional feature for applying protective film, enhancing panel durability and finish as required. |
| Pre-Cutting Device | Optional front shear for precise material preparation, streamlining the forming process. |
| Lubrication System | Designed for maintenance-free operation, eliminating the need for additional lubrication. |
| Roll Forming Line | Customizable production speeds of 20, 30, 40, 50, or 60 m/min, tailored to optimize efficiency and output. |
| Protective Safety Cover | Optional safety enclosure to enhance operator safety and comply with workplace standards. |
| Post-Cutting System | Choose between motor-driven or hydraulic cutting options for precise, clean cuts post-forming. |
| Output Handling | Flexible output solutions, including manual support tables or fully automated stackers, with lateral or longitudinal output directions available. |
| Hydraulic Power Unit | Robust hydraulic system powering the decoiler and post-cutting mechanisms for seamless operation. |
| Control System | Advanced electrical controls with options for Mitsubishi, Siemens, or AMS systems, customizable to meet specific operational requirements. |
Working process of roller shutter forming machine
Pre-cutting flow:
Decoiler → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)
Post-cutting flow:
Decoiler → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → Roll Forming System → Post-Cutting to length (Hydraulic) → Output Manual Supporter/Auto Stacker(optional)

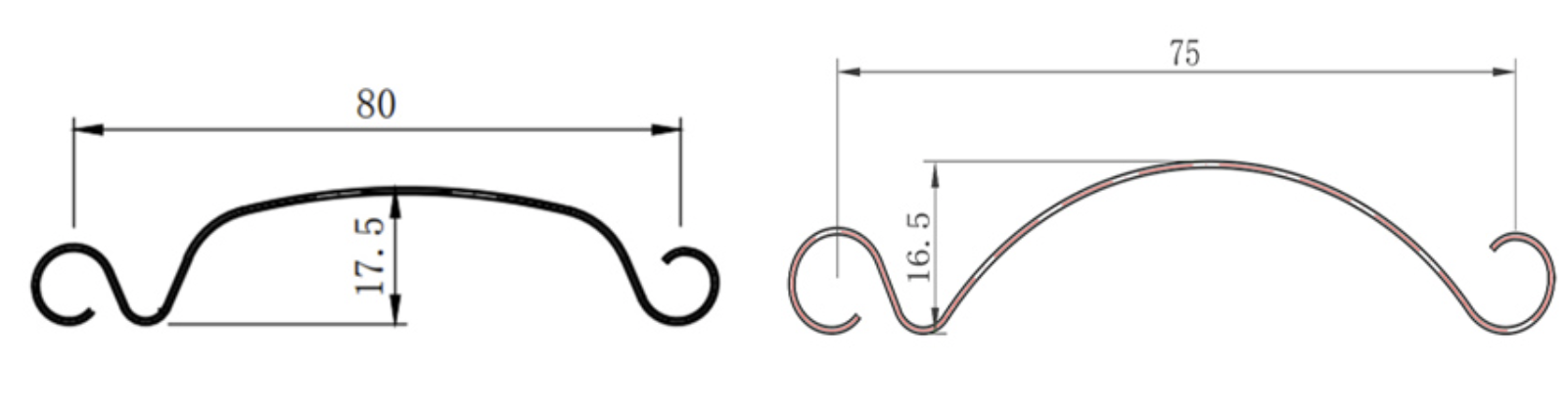

profile of roller shutter forming machine(made according to your requirement)
