Introduction to Roof Panel Roll Forming Technology
Roof panel roll forming machines are advanced manufacturing systems engineered for the high-speed, automated production of roofing corrugated sheets, siding panels, and floor decking. These machines are pivotal in the construction industry, enabling the mass production of high-quality metal roofing and wall panels with precision and efficiency. By transforming flat metal coils into profiled panels through a continuous bending process, roll forming machines deliver structural components that meet stringent industry standards. The technology integrates mechanical, hydraulic, and electronic systems to achieve production speeds ranging from 20 to 60 meters per minute, with options for customization to suit diverse profile requirements. This article delves into the scientific principles, technical specifications, and operational dynamics of roof panel roll forming machines, providing a detailed analysis of their design, material considerations, and performance metrics.
The roll forming process is grounded in the principles of plastic deformation, where metal sheets are progressively shaped through a series of rollers without compromising their mechanical properties. This cold-forming technique ensures minimal material waste and maintains the structural integrity of the raw material. With advancements such as cassette-type platforms for quick profile changes and automated stacking systems, these machines are designed for versatility and scalability, catering to both small-scale workshops and large industrial operations.

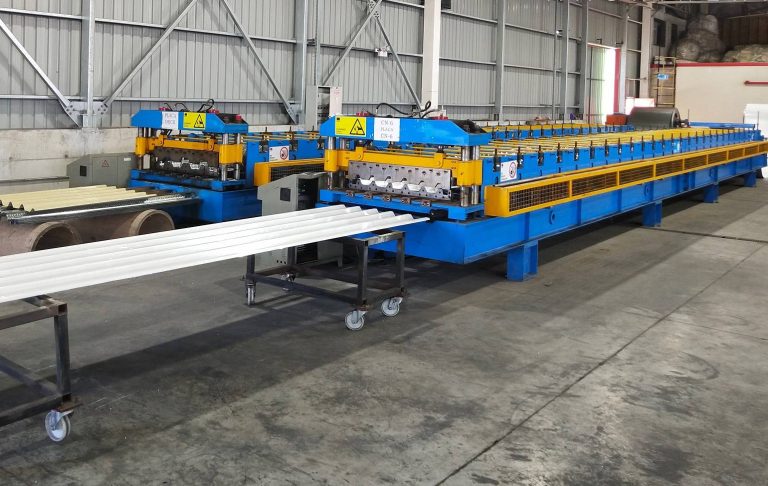

Design and Operational Mechanics
The design of a roof panel roll forming machine is a sophisticated blend of mechanical engineering and automation technology. The machine typically comprises several key components: a decoiler, feeding and guiding table, roll forming system, post-cutting mechanism, and output system. Each component is engineered to optimize the production process, ensuring precision and repeatability. The decoiler, available in capacities of 5, 8, 10, or 15 tons, handles the uncoiling of metal coils, which can be powered by hydraulic or motor-driven systems. The roll forming system, the heart of the machine, consists of a series of roller stations that incrementally bend the metal into the desired profile. These rollers are typically made from high-strength steel, often heat-treated to a hardness of HRC 58-62, to withstand the stresses of continuous operation.
The operational mechanics rely on precise synchronization between the rollers and the cutting system. A non-stop flying cut mechanism, often hydraulically or motor-driven, ensures that panels are cut to length without halting the production line, achieving speeds up to 60 m/min. The integration of programmable logic controllers (PLCs) from reputable brands like Mitsubishi or Siemens enables real-time monitoring and adjustment of parameters such as speed, length, and profile accuracy. Safety features, such as protective covers and emergency stop systems, are often optional but critical for operator safety in high-speed operations.

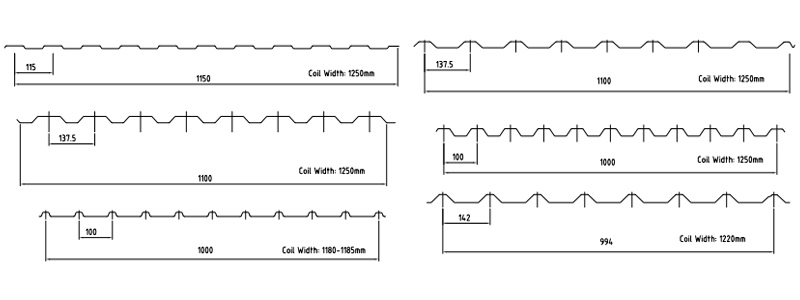

Profile Drawings Of Roof Panel Roll Forming Machine
| Component | Specifications |
|---|---|
| Decoiler | 5t/8t/10t/15t, Motor/Hydraulic/Passive (optional) |
| Roll Forming System | 20/30/40/50/60 m/min, 18-24 roller stations, HRC 58-62 rollers |
| Post-Cutting System | Hydraulic/Motor-driven, Flying cut, Precision ±1mm |
| Output System | Manual Supporter/Automatic Stacker, Lateral/Longitudinal output (optional) |
| Hydraulic System | 5.5-11 kW, Power supply for decoiler and cutting system |
| Electric Control System | PLC (Mitsubishi/Siemens/AMS), Touchscreen interface, Encoder precision ±0.5mm |
Material Science and Raw Material Requirements
The performance of a roof panel roll forming machine is heavily influenced by the properties of the raw materials used. Common materials include colored steel, galvanized steel, stainless steel, and aluminum, with thicknesses ranging from 0.3 to 0.7 mm. The yield strength of these materials varies from 230-300 MPa for standard applications to 550-675 MPa for high-strength requirements. The choice of material impacts the machine’s roller design and power requirements, as higher yield strengths demand greater forming forces and more robust roller materials.
From a material science perspective, the roll forming process exploits the ductility of metals to achieve plastic deformation without inducing cracks or excessive residual stresses. The process is conducted at room temperature, which preserves the material’s microstructure and mechanical properties compared to hot-forming techniques. Galvanized steel, with its zinc coating, offers corrosion resistance, making it ideal for roofing applications in harsh environments. Aluminum, with its lower density and excellent corrosion resistance, is preferred for lightweight structures but requires careful roller design to prevent surface damage during forming.
The width of the input coil, typically 1200, 1220, or 1250 mm, must align with the machine’s specifications to ensure proper feeding and forming. Deviations in material thickness or width can lead to misalignment, jamming, or defective profiles, underscoring the importance of precise material selection and quality control.
| Material Parameter | Specification |
|---|---|
| Material Type | Colored Steel, Galvanized Steel, Stainless Steel, Aluminum |
| Thickness | 0.3-0.7 mm |
| Yield Strength | 230-300 MPa (standard), 350 MPa (medium), 550-675 MPa (high-strength, optional) |
| Coil Width | 1200/1220/1250 mm |
| Coil Weight | Up to 15 tons (depending on decoiler capacity) |
Performance Optimization and Technological Advancements
Optimizing the performance of a roof panel roll forming machine requires a balance between speed, precision, and energy efficiency. Production speeds of 20 to 60 m/min are achievable through advanced drive systems and optimized roller configurations. High-speed operations, however, introduce challenges such as increased wear on rollers and potential thermal expansion in hydraulic systems. To mitigate these, modern machines incorporate cooling systems and wear-resistant coatings on rollers, extending their operational lifespan.
Technological advancements, such as cassette-type platforms, allow for rapid profile changes, reducing downtime in multi-profile production environments. These platforms enable operators to swap roller sets in minutes, making the machine adaptable to various panel designs, such as corrugated sheets, trapezoidal profiles, or standing seam panels. Automated stacking systems, with options for lateral or longitudinal output, further enhance productivity by streamlining the collection and packaging of finished panels.
Energy efficiency is another critical consideration. Hydraulic systems, while powerful, consume significant energy, particularly in high-speed setups. The integration of variable frequency drives (VFDs) in motor-driven systems allows for dynamic speed adjustments, reducing energy consumption during low-demand periods. Additionally, the use of high-precision encoders ensures cutting accuracy within ±1 mm, minimizing material waste and rework.
Applications and Industry Impact
Roof panel roll forming machines are indispensable in the construction industry, producing panels used in residential, commercial, and industrial buildings. The ability to produce custom profiles with consistent quality makes these machines ideal for applications requiring aesthetic appeal and structural integrity, such as roofing for warehouses, factories, and residential homes. The high-speed production capability, coupled with automation, enables manufacturers to meet large-scale demands while maintaining cost efficiency.
The industry impact of these machines extends beyond production efficiency. By enabling the use of lightweight, durable materials like galvanized steel and aluminum, roll forming contributes to sustainable construction practices. The precision of the process reduces material waste, and the durability of the panels enhances the lifespan of structures, reducing the need for frequent repairs or replacements. Furthermore, the adoption of CE-certified machines ensures compliance with international quality and safety standards, facilitating their use in global markets.
