Overview

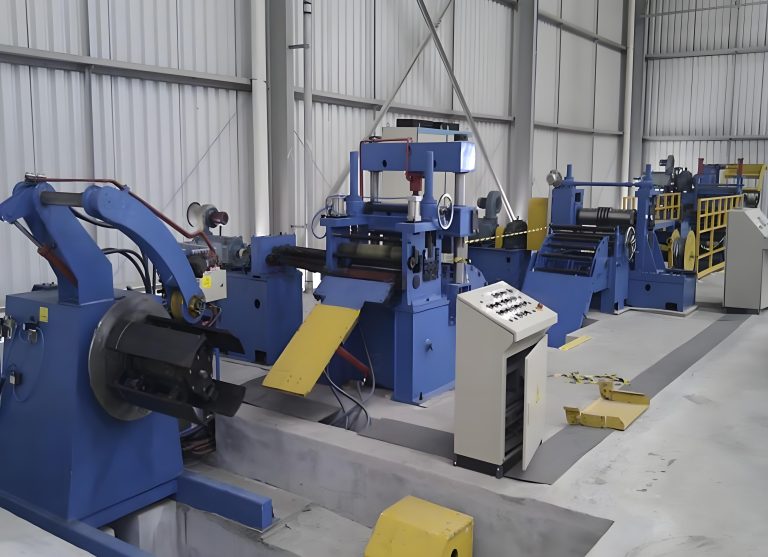

The Slitting and Cut-to-Length Line is a versatile machine designed for processing metal coils, offering multiple functions such as slitting, cutting to length, and stacking in one unit. Its robust design and durable construction ensure reliable performance across various applications, from thin gauge tinplate to heavy gauge low carbon steel.
Key Features
- Slitting Function: Available with single, double, or triple knife configurations to accommodate various material thicknesses, including tinplate and low carbon steel.
- Cut-to-Length Function: Available with single or double knife configurations to accommodate various material lengths.
- Stacking Function: Available with single, double, or triple stacker configurations to accommodate various material stack heights.
- Construction: Heavy duty, high strength low alloy steel construction designed for thicker materials, with a triple stacker available for thin gauge tinplate.
Applications
-
- Coil processing line for tinplate and low carbon steel.
- Coil processing line for heavy gauge low alloy steel.
- Suitable for light to medium gauge tinplate.
Slitting and Cut-to-Length Line Parameters
Raw Material
| Parameter | Specification |
|---|---|
| Suitable Material | Hot rolled sheet and cold rolled sheet |
| Stress | σs ≤ 235 MPa, σb ≤ 500 MPa |
| Thickness | 4.0–12.5 mm |
| Coil Width | 700–1500 mm |
| Coil Inner Diameter (ID) | Φ508 / Φ610 mm |
| Coil Outer Diameter (OD) | Φ1000–Φ1800 mm |
| Coil Weight | ≤ 25 T |
Product Parameter
| Parameter | Specification |
|---|---|
| Length | 500–12,000 mm |
| Length Tolerance | ≤ ±1/3000 |
| Diagonal Tolerance | ≤ ±1.5/3000 |
| Stack Weight Capacity | ≤ 10,000 kg |
| Stack Height | 400 mm |
Equipment Parameter
| Parameter | Specification |
|---|---|
| Leveling Speed | ≤ 25 m/min
– 4.0 mm ≤ t ≤ 10.0 mm: Max. Speed 25 m/min
– 10.0 mm < t ≤ 12.5 mm: Max. Speed 16 m/min |
| Power Source | 380V, 50Hz, 3P, 5-wire (customizable per customer) |
| Total Power | Approx. 100 kW |
| Main Driving Motor | – Decoiler Motor: AC 3 kW – 11 Rollers Leveling Machine Motor: DC 75 kW – Shearer Motor: AC 30 kW |
| Machine Size (L×W) | Approx. 27 m × 9 m |
| Direction | Feeding from left, output to right (from operation side) |
| Machine Color | According to customer’s requirement |
| Operator Requirement | 1 technical worker, 2 common workers |
Equipment Parameter
| No. | Item | Quantity, set |
|---|---|---|
| 1 | Coil loading car (include the base) | 1 |
| 2 | Decoiler (include the support arm) | 1 |
| 3 | Sheet feeding device | 1 |
| 4 | Guiding device | 1 |
| 5 | Pinch roller and 11 rollers leveler | 1 |
| 6 | The scale | 1 |
| 7 | The shearer | 1 |
| 8 | Lift platform | 1 |
| 9 | Hydraulic, lubrication and pneumatic system | 1 |
| 10 | Electrical control system | 1 |
