The double-in-roll C-shaped steel photovoltaic bracket is designed primarily for ground-based and concrete flat-roof photovoltaic power stations. This bracket stands out for its exceptional adjustability, robust structural integrity, and sleek, aesthetically pleasing design. With precisely engineered bending angles, accurate hole positioning, straight edges, and exact dimensions, it offers comprehensive specifications to meet diverse customer requirements. Additionally, its cost-effective pricing makes it an economical choice without compromising quality.
Crafted as a specialized C-profile steel, the double-in-roll C-shaped steel is versatile, extending its utility beyond solar applications to include shelving, ceiling frameworks, drywall partitions, and steel structure constructions. Hangzhou Roll Forming Technology’s advanced solar PV support forming machines ensure the production of these brackets with consistent high quality and efficiency, delivering reliable performance at a steady pace.

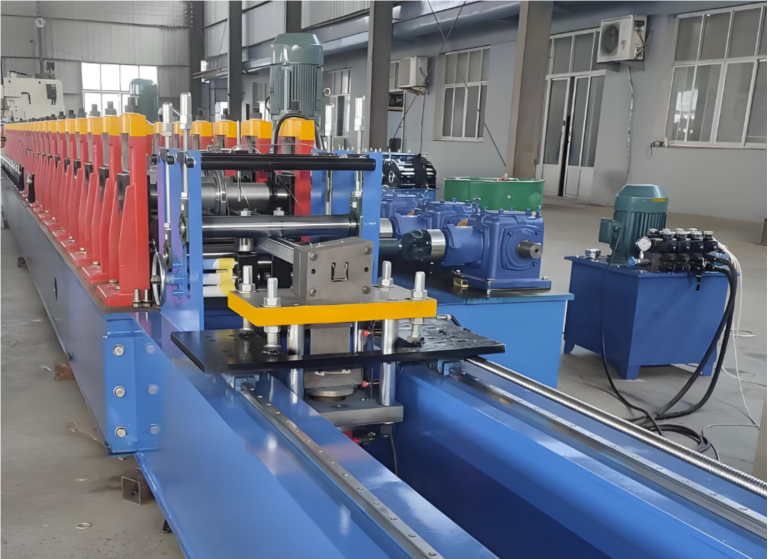

Features and Benefits of the Solar Photovoltaic Support Rolling Machine
The solar photovoltaic support rolling machine is engineered for versatility, efficiently handling both heavy-duty and light-duty applications. Its innovative design incorporates adjustable spacers, enabling the production of multiple profile sizes with seamless adaptability. Equipped with an integrated flexible punching system, the machine ensures precise customization to meet varied project demands.
Operators can choose between pre-cutting and post-cutting options, tailoring the process to specific requirements. With a forming speed of 12–15 meters per minute, the machine balances efficiency and precision, delivering consistent output without sacrificing quality. Certified under CE and European quality standards, it boasts multiple patents, reflecting its cutting-edge technology and reliability. Ready-to-ship machines are available in stock, ensuring swift delivery to keep your projects on schedule.
Compatible Coil Sheet Materials for the Solar Panel Rack Forming Machine
The machine is designed to work with a range of materials, including cold-rolled steel, hot-rolled steel, and galvanized steel. It accommodates material thicknesses from 1.5 to 3.0 mm and yield strengths of 230–300 MPa. The width is fully customizable to match specific profile requirements, offering flexibility to suit diverse solar panel rack designs.
specification of Solar Photovoltaic Support Rolling Machine
|
Parameter
|
Details
|
|---|---|
|
Machine Condition
|
Brand new, A-grade quality
|
|
Panel Shape
|
Customizable based on profile drawings and customer specifications
|
|
Operator Requirement
|
1–2 operators
|
|
Power Supply
|
220V/380V/415V/460V, 50/60Hz, 3-phase (customizable per request)
|
|
Equipment Weight
|
Approximately 12 tons
|
|
Dimensions (L×W×H)
|
Approx. 25m × 3m × 2m
|
|
Loading Size
|
Typically requires 1×40′ container (optional 1×20′ GP container)
|
|
Equipment Color
|
Standard blue/white, customizable per request
|
Components of Solar Panel Rack Forming Machine
| 1. Decoiler | 3t/5t Motor/hydraulic motor/passive (optional) |
| 2. Feeding table | |
| 3. Leveling device | |
| 4. Holes punching device | as profile requests |
| 5. Roll forming system | 12-15m/min |
| 6. Safety cover | optional |
| 7. Post cutting device | |
| 8. Output System | Manual supporter/ Automatic Stacker (optional) |
| Stackmaster | (Output direction) Lateral/Longitudinal (optional) |
| 9. Hydraulic system | Power supply for holes punching /post-cutting system |
| 10. Electric control system | MITSUBISH/ SIEMENSE/AMS (optional or as requested ) |
Technical Specification of Solar Panel Rack Forming Machine
| Parameter | Details |
|---|---|
| Installation Location | Ground or flat concrete roof |
| Main Material | Hot-dip galvanized carbon steel |
| Design Wind Pressure | 0.55 kN/m² |
| Design Snow Pressure | 0.5 kN/m² |
| Service Life | Up to 30 years |
Streamlined Workflow of the Solar Panel Rack Forming Machine
The solar panel rack forming machine operates with precision and flexibility, offering two distinct workflows—pre-cutting and post-cutting—to accommodate diverse production needs. Each process is designed for efficiency, ensuring high-quality output tailored to specific profile requirements.
- Pre-Cutting Workflow
This process begins with the decoiler (available in passive or automatic configurations), which smoothly unwinds the coil. The material is then fed into the feeding and guiding table for accurate alignment, followed by the leveling system to ensure a flat surface. A customizable hole-punching system creates precise perforations as per the profile specifications. The material is pre-cut to the desired length before entering the roll forming system, where it is shaped into the final profile. The finished product is collected via a manual supporter or an optional auto stacker for enhanced automation.
- Post-Cutting Workflow
Similar to the pre-cutting flow, this process starts with the decoiler (passive or automatic) and progresses through the feeding and guiding table and leveling system for proper material preparation. The hole-punching system then adds tailored perforations based on the profile design. The material proceeds directly to the roll forming system for shaping, followed by a hydraulic post-cutting mechanism that trims the formed profile to the specified length. The final product is discharged onto a manual supporter or an optional auto stacker for convenient handling.

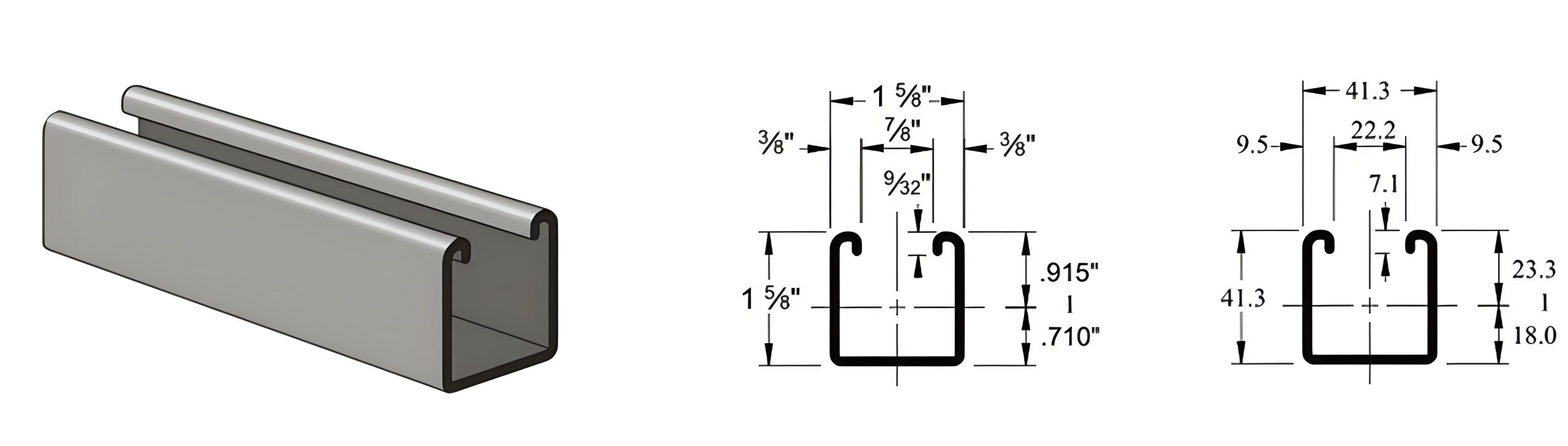

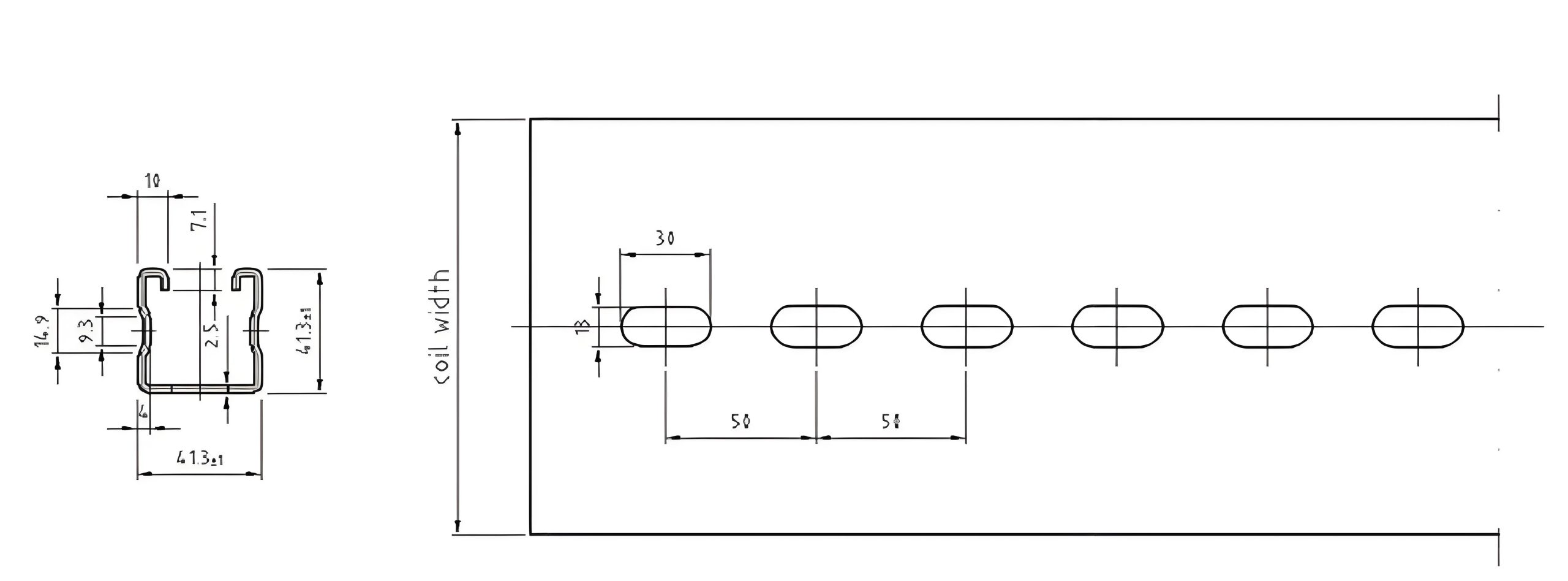

profile drawings of the Solar Panel Rack Forming Machine
installation of the Solar Panel Rack Forming Machine
application of the Solar Panel Rack Forming Machine
