Steel double layer roll forming machine

double-Layer Roll Forming Machine

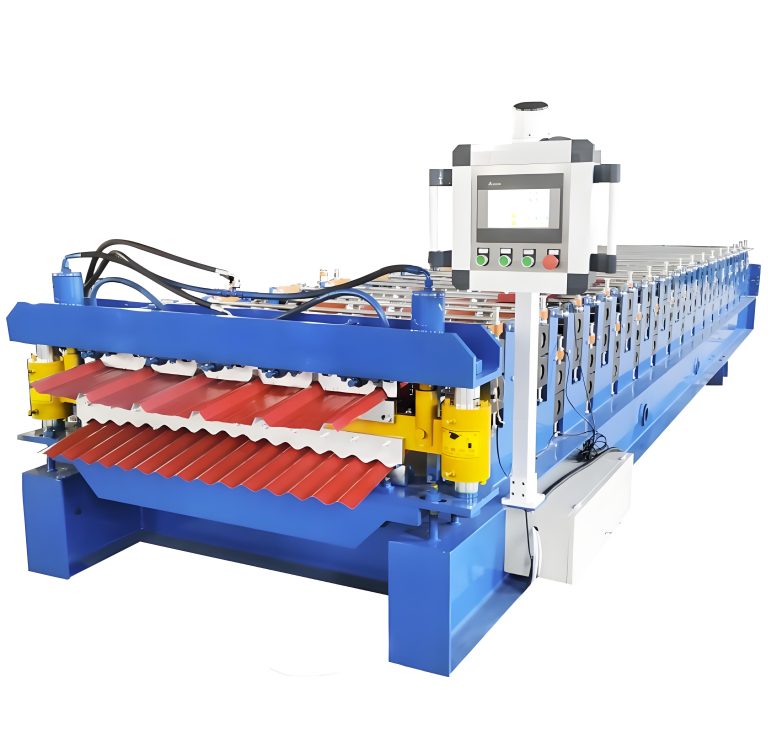

Our advanced dual-layer roll forming machine is engineered to craft two distinct types of metal roofing sheets with precision and efficiency. It seamlessly produces combinations such as:

  • Trapezoidal roofing sheets and corrugated roofing sheets
  • Trapezoidal sheets and metal roof tiles
  • Corrugated sheets and glazed metal roof tiles

Please note that the machine is designed to operate one layer at a time. This is because the integrated PLC control system is configured to manage specifications—such as cutting length and production quantities—for a single sheet type at any given moment. Both the upper and lower roll forming components are powered by a shared motor, with a clutch mechanism enabling smooth transitions between the two layers. This design ensures optimal performance and reliability for high-quality roofing sheet production.



Product Features

  1. Certifications: Proudly compliant with ISO 9001 and CE standards, ensuring top-tier quality and safety.
  2. Lifetime Support: Comprehensive after-sales service and support for the entire lifespan of the product.
  3. Advanced Control System: Equipped with a Mitsubishi PLC and intuitive touchscreen interface for seamless machine operation.
  4. Durable Rollers: Rollers coated with 0.05mm chrome plating and crafted from 82mm solid steel shafts, designed for exceptional durability with a lifespan exceeding 10 years.
  5. Efficient Operation: Requires only a single operator, minimizing labor costs while maximizing productivity.
  6. Precision Cutting: Cutting blades undergo heat treatment, with Cr12 mold steel cutters receiving advanced quenching for superior strength and accuracy.
  7. Customizable Length: Features precise cut-to-length functionality for tailored production needs.
  8. Global Support: Offers technician-led installation and training services worldwide for hassle-free setup and operation.

Specifications

  • Material:
    • Type: Pre-painted steel coil or galvanized coils.
    • Thickness: 0.3–0.7 mm.
    • Yield Strength: 235 MPa or 550 MPa.
  • Roller Material: No. 45 forged steel with 0.05 mm hard chrome coating.
  • Forming Speed: Approximately 20 m/min.
  • Speed Adjustment: AC frequency control.
  • Drive System: Decelerating motor with chain drive.
  • Cutting System:
    • Mode: Hydraulic cutting.
    • Cutter Material: Cr12 mold steel.
  • Length Measurement: Encoder-based.
  • Control System: Mitsubishi PLC with button and touch screen interface.
  • Power:
    • Main Motor: 7.5 kW.
    • Hydraulic Station Motor: 2.2 kW.

Work flow of  Steel double layer roll forming machine

Decoiler→Feeding Guide Device →Roll Forming System→ Hydraulic Post Cutting Device→Exit Rack→ PLC Control System

Steel double layer roll forming machine Steel double layer roll forming machine

Applications

  1. Automotive Components: Produces high-quality parts for automotive applications, meeting rigorous industry standards.
  2. Construction Materials: Ideal for manufacturing roofing, ceiling, wall panels, and drywall components (tracks and studs) for durable building solutions.
  3. Specialized Panels: Creates gate panels, guard panels, and sound-insulating materials for diverse structural and safety needs.
